Black & White Self-Adhesive D-Profile Weatherstrip
Black and white self-adhesive D-profile weatherstrip for door and window frame gaps. Select by measured closed gap and compression fit, then confirm foam density, adhesive surface, roll length and packaging.
Peel-and-Stick D-Profile Weatherstrip
The hollow D-shaped foam body compresses against door and window frames to help reduce drafts, dust, contact noise and light vibration. The pressure-sensitive adhesive backing supports fast installation on clean, dry surfaces.
Typical Applications
- Interior and exterior door frames
- Wood, metal and uPVC window frames
- Cabinets, access panels and enclosures
- Retail weatherstrip and private-label programs
Available Variants
| Profile | Self-adhesive D-profile foam weatherstrip |
| Shown options | White 20 ft roll and black 23 ft roll |
| Material | EPDM sponge foam; alternatives reviewed by application |
| Adhesive | Pressure-sensitive peel-and-stick backing |
| Customization | Profile size, density, color, adhesive and roll length |
| Packaging | Bulk rolls, paired rolls and OEM retail packaging |
The 20 ft and 23 ft labels are example retail roll lengths, not universal specifications.
Choose D-Profile Weatherstrip by the Closed Gap
Measure the smallest and largest closed gap at several points. The free profile height must compress enough to maintain contact without creating excessive door or window closing force.
| Check | What to record | Why it matters |
|---|---|---|
| Gap range | Minimum and maximum closed gap | Sets the required free height and working compression |
| Frame surface | Material, finish, flatness and cleanliness | Determines adhesive preparation and bond validation |
| Movement | Closing direction, frequency and allowable force | Helps prevent over-compression, drag and early wear |
| Appearance | Black or white color and visible installation area | Matches the frame while keeping the sealing line consistent |
What the 20 ft and 23 ft Images Do—and Do Not—Confirm
The supplied images identify example roll lengths and colors. They do not provide a complete dimensional or performance specification for every order.
| Item | Shown in the images | Must be confirmed for the order |
|---|---|---|
| Color / length | White 20 ft example; black 23 ft example | Selected color, net roll length, number of rolls and packing |
| Cross-section | Hollow D-style profile | Overall width, free height, wall construction and split/paired-roll format |
| Fit | Door-frame installation examples | Minimum/maximum gap, target compression and closing force |
| Foam | Black and white compressible appearance | Material grade, density/firmness, recovery and environmental requirements |
| Adhesive | Peel-away liner shown | Adhesive grade, substrate, preparation, installation and bond test |
Do not select the profile from color and roll length alone. Approve a dimensioned section and fit/bond sample before a production order.
Design Features to Validate
Compression Fit
Confirm the selected D-profile height against the minimum and maximum closed gap and allowable closing force.
Adhesive Bond
Validate the specified adhesive on the real cleaned substrate and under the intended installation conditions.
Material Grade
Confirm the exact foam compound, density, recovery and environmental test requirements for the project.
OEM Ready
Dimensions, density, color, roll length and packaging can be customized.
Custom Manufacturing Support
- Custom profile dimensions and foam density
- Adhesive selection for different surfaces and environments
- Custom color, roll length and paired-roll configuration
- Private-label bags, boxes, labels and cartons
- Sample availability reviewed after profile, color and application confirmation
Check Sample Availability & Request a Quote
Send the gap size, required profile, application surface, roll length and estimated quantity. Our team will review target compression, sample availability and packaging for the selected specification.
Self-Adhesive D-Profile Door Seal Examples
Black and white D-profile foam weatherstrips with peel-and-stick backing for door-frame gap sealing. The 20 ft and 23 ft labels shown are example retail roll lengths; custom roll length and packaging can be reviewed for OEM orders.

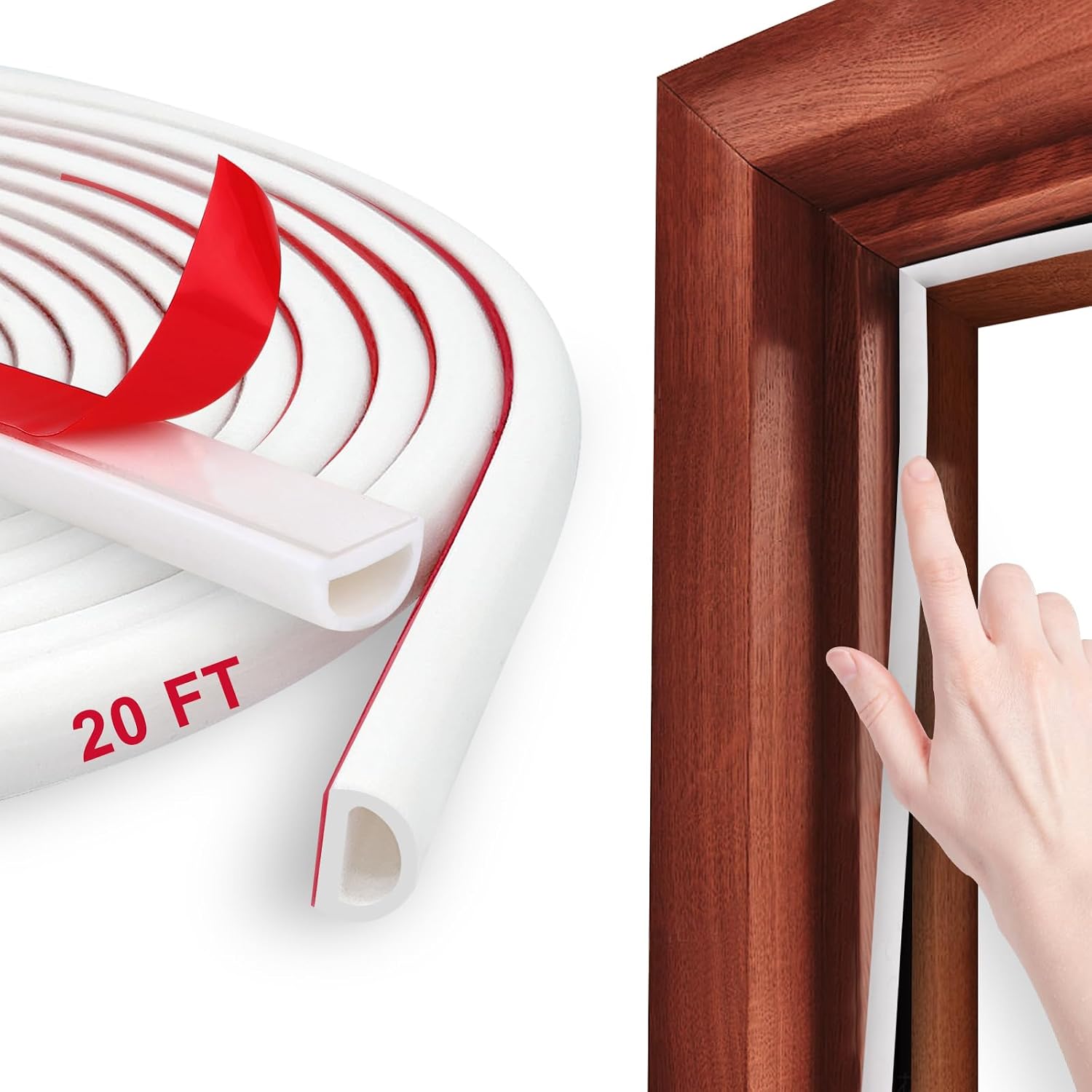

White Self-Adhesive Foam Door Seal
White compressible D-profile weatherstrip shown with peel-away liner and a wooden door-frame installation example.

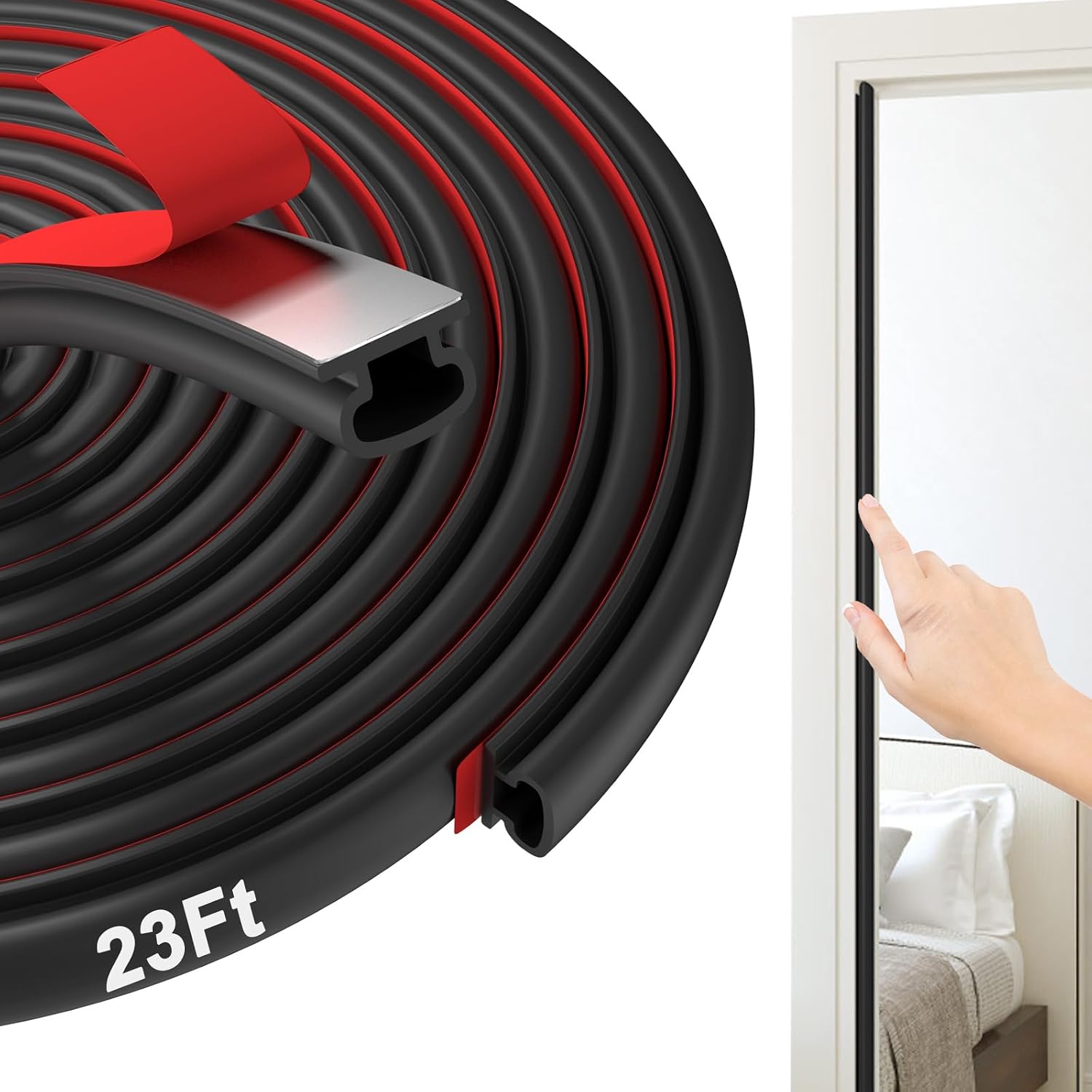

Black Self-Adhesive Foam Door Seal
Black D-profile weatherstrip with red release liner, shown as a coiled roll and installed vertically on a door frame.
Frequently Asked Questions
No. These are example retail roll lengths. Custom roll length, paired-roll configuration and private-label packaging can be reviewed for OEM orders.
The product is shown in black and white. Other colors, dimensions, density and adhesive requirements can be reviewed for custom orders.
Sample availability is confirmed after the required profile dimensions, color, adhesive surface, application and destination are reviewed.
Compare Self-Adhesive Foam Weatherstrips
Multi-Profile Self-Adhesive Foam Weatherstrip
Compare profile options, applications and OEM customization.
Self-Adhesive Foam Seals
Browse D, P, E, I and custom foam weatherstrip options.
Custom Foam Seal Development
Send a sample or drawing for profile matching and quotation.
Information Needed for an Accurate Quote
| Gap & profile size | Closed gap range, D-profile width and height |
|---|---|
| Foam | EPDM sponge density/color and required recovery |
| Adhesive | Bonding substrate, service temperature and liner preference |
| Order | Roll length, total quantity, label and packaging |
Send Your Specs for Review
Attach a drawing, perpendicular cross-section photo or sample dimensions. Include the application and estimated order quantity.
- Selected-specification sample availability reviewed by profile and color
- Drawing or sample-based OEM/ODM review
- Custom size, material and packaging options
- Technical and commercial reply after requirement review
